TIGERSECU Ultra HD 5MP 8-Channel Hybrid DVR Recorder Without Hard Drive (Cameras Not Included)

8-Channel DVR Security Recorder

Ultra HD 5MP Hybrid 8-Channel DVR with 16TB storage capacity compatible with analog and IP cameras.

16-camera live streaming and playback

See clear detail with 5 megapixels super HD video, and watch live or playback on your mobile device or TV. Flexible camera dashboard layout allows you to rearrange camera tiles to meet your needs.

Customizable Motion Detection Areas

Reduce false alarms with adjustable motion detection areas and sensitivity.

Share Access with Family

Give peace of mind to loved ones with shared camera access. Live-stream remotely from multi-devices.

Complete Control from the App

Use the security app to check in on what’s happening at home from anywhere at any time.

Ultra HD

Resolution

Easy Setup

& Installation

24/7 Full-time

Recording

Encrypted Data

Protection

Technical Details

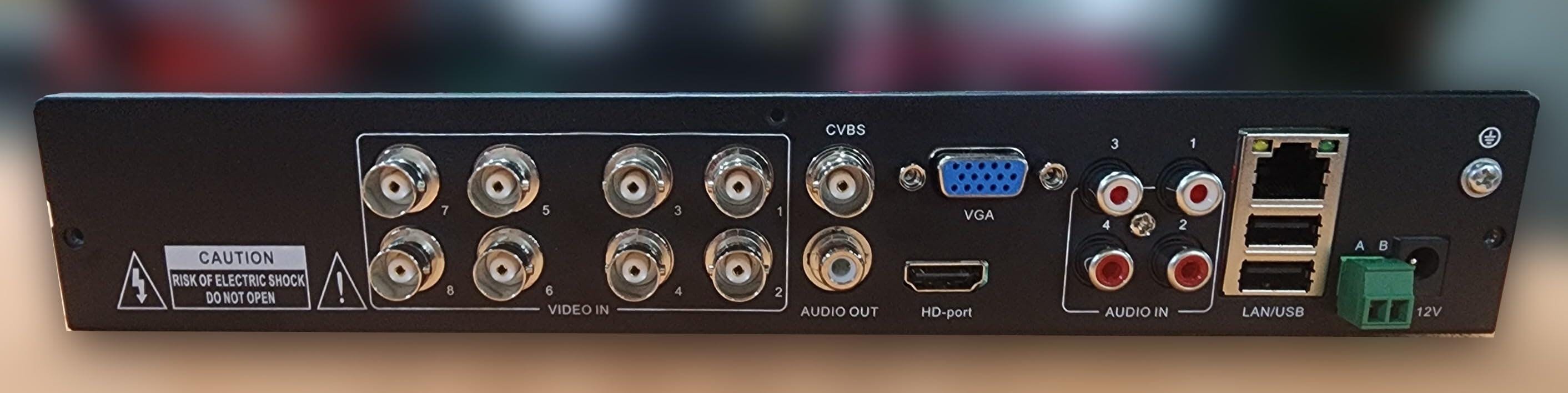

Video Input	8 Channels BNC wired cameras and 8 Channels IP cameras
Mx Live-View/Playback Channels	16 Channels
Video Output	1 HD-Port, 1 VGA Port, 1 Main CVBS Port
Audio Input/Output	4 RCA audio in, 1 RCA audio out
PTZ Interface	RS-485
Storage Included	None
Storage Capacity	Supports up to 16TB
Network Interface	RJ45 X1 (10/100 M)
USB	Two USB 2.0 ports
Operating Power	DC 12V 3A
Camera Requirements	Compatible with TVI, CVI, AHD, and analog (D1) cameras and IP cameras. Does not work with SDI cameras. Confirm compatibility with TIGERSECU’s Help Desk before purchase.
Monitor Requirements	Works with monitors with display resolution of 1280 x 1024 pixels or higher.
Mobile Requirements	Mobile app requires iOS 11.0 or later and Android 6 or later. Compatible with iPhone and iPad.

Video Output	VGA: 1920x1080p/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz; HDMI: 3840×2160/30Hz, 1920×1080/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Support HD TVI Input	8MN@12fps, 5MP@ 12.5fps, 5MP@20fps, 4MP@15fps, 3MP@18fps, 1080P@30fps, 720P@30fps
Support AHD Input	8MN@12fps, 5MP@ 12.5fps, 5MP@20fps, 4MP@15fps, 3MP@18fps, 1080P@30fps, 720P@30fps
Support HD CVI Input	8MN@12fps, 5MP@ 12.5fps, 5MP@20fps, 4MP@15fps, 3MP@18fps, 1080P@30fps, 720P@30fps
Support CVBS Input	PAL/NTSC
Analog HD Playback Resolution	8MN@10fps, 5MP@8fps, 4MP@11fps, 3MP@14fps, 1080P@20fps, 720P@30fps

IP Camera Input	8 channels (up to 16 channels)
IPC Recording Resolution	Up to 8MP
IPC Playback Resolution	Up to 8MP
Max Playback Channel	16 channels
Motion Dection	Motion detection is enabled by default for all analog channels. Supports human detection when using with TIGERSECU PoE IP cameras, reducing false alarms caused by objects like leaves and flying bugs.
